Price: ₹23,137 - ₹19,137.00
(as of Dec 03, 2025 12:26:36 UTC – Details)

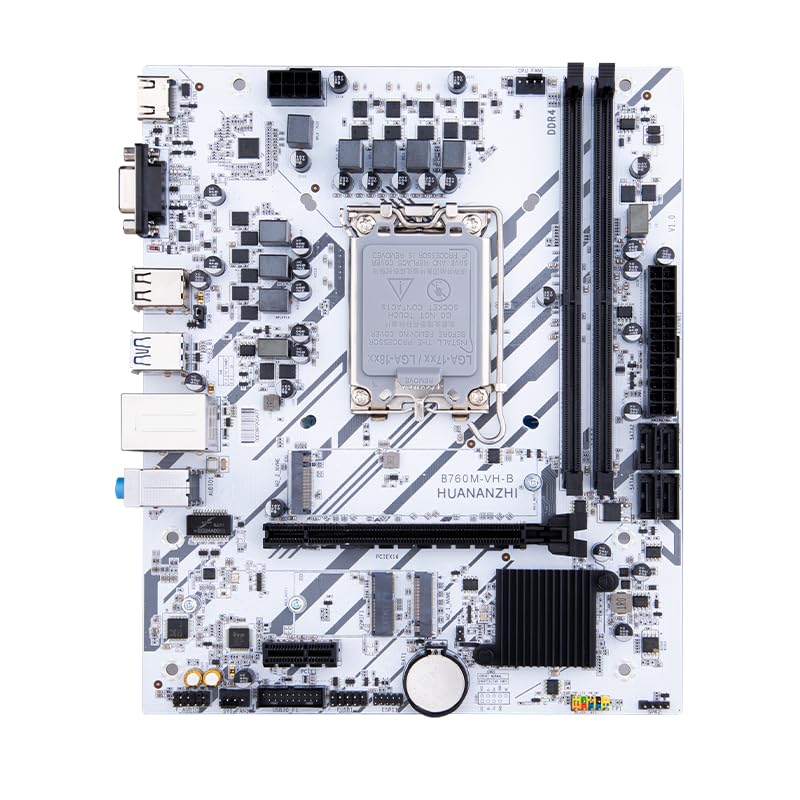

Motherboard Model: HUANANZHI B760M-VH-B Motherboard
Chipset: INT B760 Chipset
CPU Pin: Support LGA1700 platform processors
Memory Slots: 2 DDR4 memory slots
Memory Standard: Support dual-channel DDR4 3200/2933/2666/2400MHz memory (XMP overclocking support/depends on CPU) up to 64GB.
Storage interface: 4 SATA3.0 6Gbps hard disk interfaces

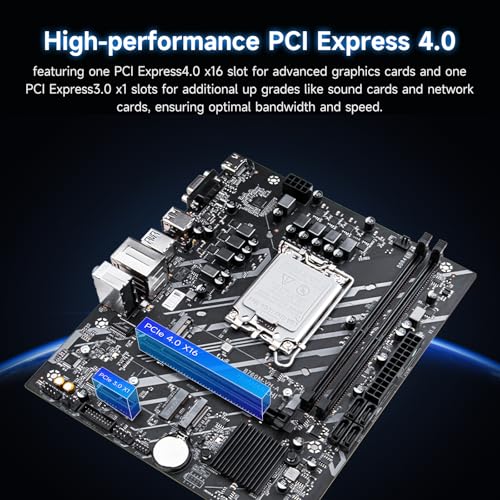

Expansion Slot: 1 PCI Express4.0x16 slot, 1 PCI Express3.0x1 slot
Expansion Ports: 2 M.2 2280 NVME PCIE X4 4.0, 1 M.2 WIFI (CNVI protocol)
Onboard Sound Card: Renesas Hi-Fi Audio ALC897
Onboard NIC: Renesas Gigabit LAN Card RTL8111H
Power connector: 24PIN+8PIN
Fan Pins: 1x CPU_FAN pin, 1x SYS_FAN pin
Number of phases: 8-phase power supply
PCB Layers: 4
Motherboard Specification: 220*180MM M-ATX board type
Rear Panel Interface: 2 USB2.0 480Mbps ports, 2 USB3.2 10Gbps ports located at the lower end of the RJ45, 2 USB3.2 5Gbps ports, 1 RJ45 network interface, 1 3-hole audio interface, 1 VGA display interface, 1 HD2.0 display interface
Front panel interface: 1 set of USB2.0 480Mbps pins, 1 set of USB3.2 5Gbps pins, 1 set of front audio pins, 1 set of CMOS jumper caps, 1 set of Debug pins, 1 set of Buzzer pins, 1 set of Power On/Restart pins
Supported Systems: Win10 Win11 Support incoming call startup/timed startup/wake on network/network card startup
BIOS: AMI UEFI BIOS

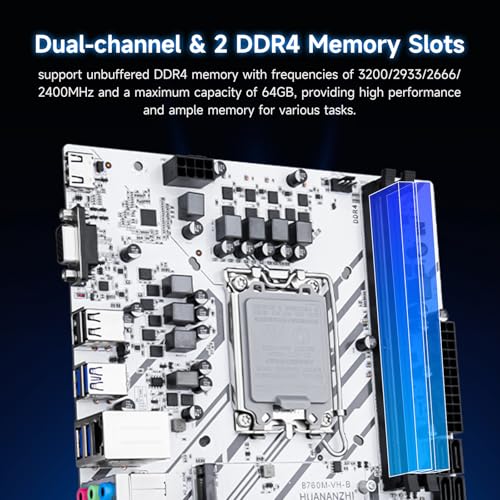

【Dual-channel DDR4】The HUANANZHI computer motherboard comes with 2 DDR4 memory slots, supporting dual-channel architecture. These slots support unbuffered DDR4 memory with frequencies of 3200/2933/2666/2400MHz and a maximum capacity of 64GB, providing high performance and ample memory for various tasks.

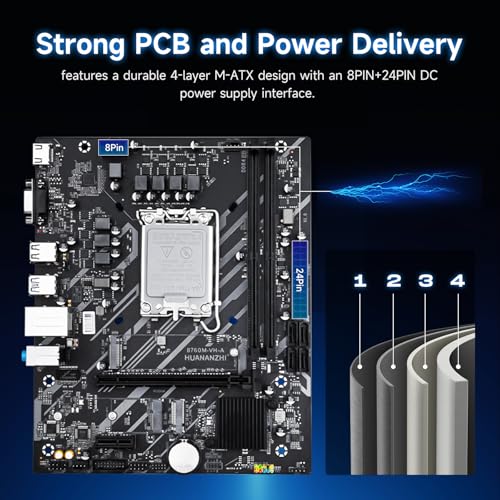

【Strong PCB and Power Delivery】The HUANANZHI gaming PC motherboard features a durable 4-layer M-ATX design with an 8PIN+24PIN DC power supply interface. With the use of all-solid capacitors and optimized power circuit layouts, it ensures precise and stable current delivery to the CPU, contributing to reliable performance and longevity.
【High Adaptability】The computer desktop motherboard with LGA 1700 socket offers versatile connectivity, including 4 USB 3.2, 2 USB 2.0 ports and 4 high-speed SATA 3.0. These features ensure compatibility with various devices and support high-speed SSD performance, providing flexibility and efficiency for diverse computing needs.
【SATA 3.0 High-Speed Interface】The HUANANZHI B760M-VH motherboard includes SATA 3.0 high-speed interfaces, providing quick boot times, broad compatibility, and faster read speeds. These interfaces improve system responsiveness and overall efficiency for a better user experience.
